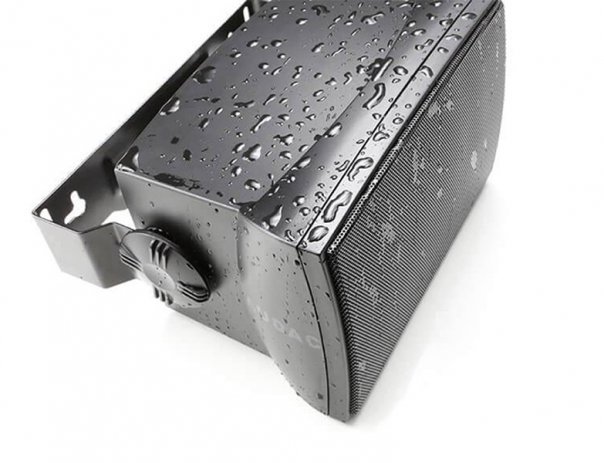

Audac WX 502_O vodootporni zvučnik

13.340,00 rsd
Na Lageru


Audac VX502_O spoljni zvučnik. Bela ili crna boja.

Dvosistemski zvučnik koji je specijalno dizajniran za spoljnu upotrebu. Poseduje 1"dome tweeter visokotonac i 5 1/4" low-mid woofer koji postižu snagu od 50W RMS. Moze se koristiti standardno na 8ohm u sistemu ali i u 100V sistemu i to na 40, 20 ili 10W snage. Veoma zaštićeni od spoljnih faktora, kako konektori tako i sam zvučnik, moze raditi na temperaturi od -25-70 stepani Celzijusa.

Proizvodi se u crnoj i beloj boji.

The WX502/O is a powerful 2-way performance speaker which is especially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with an 1” dome tweeter and a 5 1/4” low frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 100V PA systems with power taps for 40 Watt, 20 Watt and 10 Watt. Unlike the standard WX502, this version is specially treated for outdoor use. A special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum grill allows water to flow out and the rotatable 5 pole waterproof connector with power tap selection makes sure that the speaker meets the IP55 standard. The included mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker, and an integrated advanced protection network protects the tweeter against overload. The WX502/O has an Ingress Protection rating of 55.

Specifikacija :

Speaker type 2-way
Max. Power 100 W
RMS Power 50 W
Impedance 8 Ω
Sensitivity (1W/1m) 87 dB
Ingress Protection rating IP55
Connectors Waterproof AWX-5 connector
Line Transformer Tappings 1 40 W / 250 Ω
  2 20 W / 500 Ω
  3 10 W / 1000 Ω
Sound Pressure (Max. W/1m) @ 8 Ω 104 dB
  @ 100 V 102 dB
Frequency Response (± 3 dB) 70 Hz - 18 kHz
  Range (-10 dB) 55 Hz - 20 kHz
Crossover Frequency 2.5 kHz
  Type Passive built-in
Dispersion Horizontal 110°
  Vertical 110°
Drivers HF 1”
  LF 5”
Dimensions 212 x 147 x 136 mm (W x H x D)
Weight 2.540 kg
Operating temperature -25 °C ~ 70 °C
Construction ABS
Mounting & handling Mounting bracket
Front finish Aluminium grill
Colours Black (RAL9005) (WX502/OB)
  White (RAL9003) (WX502/OW)
Accessories Included Mounting bracket
    5-pin connection cable (70 cm)
  Optional AU570120005 - 5-pin cable 0.5 m
    AU570120025 - 5-pin cable 2.5 m
    AU570120050 - 5-pin cable 5 m
